Power BI Histogram with Bins – Includes DAX

Alright to start this Tutorial off right we are going to incorporate the new feature released this spring from Power BI, called publish to web. Below you can view last weeks tutorial and interact with the data. Feel free to click around to see how the visualization works (you can click the shaded states or on the state names at the bottom).

For this tutorial we will build upon the last tutorial, From Wikipedia to Colorful Map. If you want to follow along in this tutorial click on the link and complete the previous tutorial.

Materials

Power BI Desktop (I’m using the March 2016 version, 2.33.4337.281) download the latest version from Microsoft Here
Mapping PBIX file from last tutorial download Maps Tutorial to get a jump start

Understanding the Data

Picking up where we left off we have data by state with data from the 2010 Census and 2015 Census.

Data from Region Maps Tutorial

What we would like to identify is how many states are within a given population range. Say I wanted to see on the map, or in a table all the states that had 4 million or less in population in 2010.

Creating Bin Data

To do this we will create bins for our data. Enter custom data in this format. For the tutorial on entering custom data into Power BI Desktop check out this tutorial on Manually Enter Data. Click on the Enter Data button on the Home ribbon. Enter the data as following:

Enter Bucket Data

Note: Make sure you name the new table Buckets as shown in the image above.

Click Load to bring the data into the data model. Notice we now have a new table in the Field column on the right.

Buckets Table

Creating the DAX Measure

Next we will create a measure to evaluate the state level data into our newly created buckets. This will be produced using DAX (Data Analysis Expressions). DAX is an extremely powerful language which is used in SQL applications and Analysis Services. More information can be found on DAX here. Since DAX is so complex we won’t go into a full explanation here. However, we will have many more topics in the future working on and building DAX equations.

Click the Ellipsis next to the table labeled US Census. Then click the first item in the list labeled New Measure.

Note: Ellipsis is the term used for those triple dots found in newer Microsoft applications.

Example of Ellipsis

A formula bar opens up underneath the ribbons bar. Here is where we will name and type in the new measure. The equation we will need to add is the following:

Bins = CALCULATE(COUNTROWS(FILTER('US Census',and([2010 Census] >= min(Buckets[Min]),[2010 Census] <= MAX(Buckets[Max])))))

Press Enter to enter the measure into PowerBI.

Explanation of the Equation

All text before the equal sign is the name of the measure. All the data behind the equal sign is the DAX expression. Essentially this equation is calculating the number of rows where we have data between the Buckets “Min” value and Buckets “Max” value. This is the magic that is DAX. In this simple expression we can compare all our data against our buckets ranges we made earlier.

Finally our new Bin measure should look like the following:

Bin Measure Created

Modifying the Visuals

Now lets modify our visuals to incorporate the new Bins measure. Click on the existing map on the page. Remove the % Change item from the Values selection. Add the Bins Measure to the Values section. Notice the map changes color. Next, add the Name field from the table called Buckets into the Legend field. Our map should look similar to the following:

Map with Bins Added

Next Click on State, 2010 Census, Bins, and Name (from Buckets table) and make a table. It should look like the following:

Table of Bins Measure

Building the Bar Chart

Lastly, we will build a bar chart using our Bins Measure. Click on the Stacked Column Chart Visual and add the following items to the corresponding categories:

Axis = Name (from the Buckets table)
Legend = Name
Value = Bins (from US Census table)

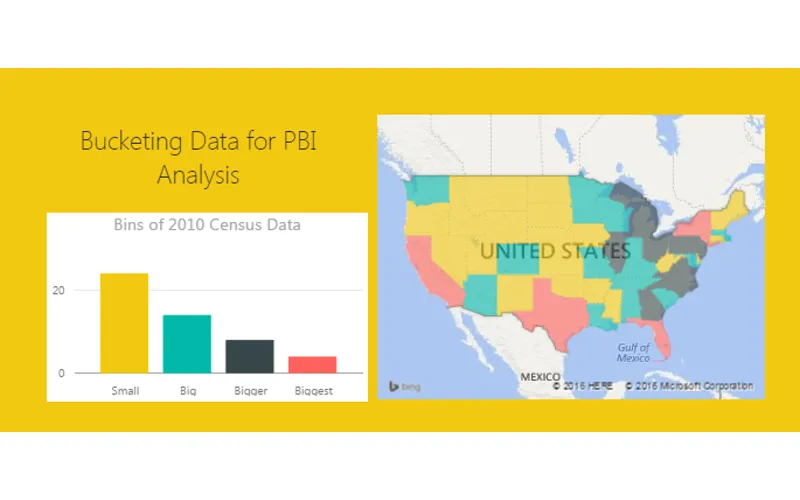

This will yield the following visual:

Bins in Bar Chart

Click on the Ellipsis of the bar chart and then click Sort By, finally click Bins. This will order the items in descending order by the count of the items found in each bin.

Interactive Exploration

Now have fun with your new data. Click on each of the bars in the bar chart and watch your data transform between the table, and the map.

Selection Big in the Bar Chart

Credits

I have to give credit where credit is due. Below is the page from Power Pivot Pro that I used to create binning in the tutorial chart. The binning shown on PowerPivotPro is for Power Pivot but the functionality is the same. Enjoy.

http://www.powerpivotpro.com/2015/03/creating-a-histogram-with-a-user-defined-number-of-buckets/

Want to learn more about PowerBI and Using DAX? Check out this great book from Rob Collie talking the power of DAX. The book covers topics applicable for both PowerBI and Power Pivot inside excel. I’ve personally read it and Rob has a great way of interjecting some fun humor while teaching you the essentials of DAX.
